Visual Demo Module
This module is used to manually control Aesthetix light sources and cameras. Surface or gloss images from these screens can be saved with or without overlays.

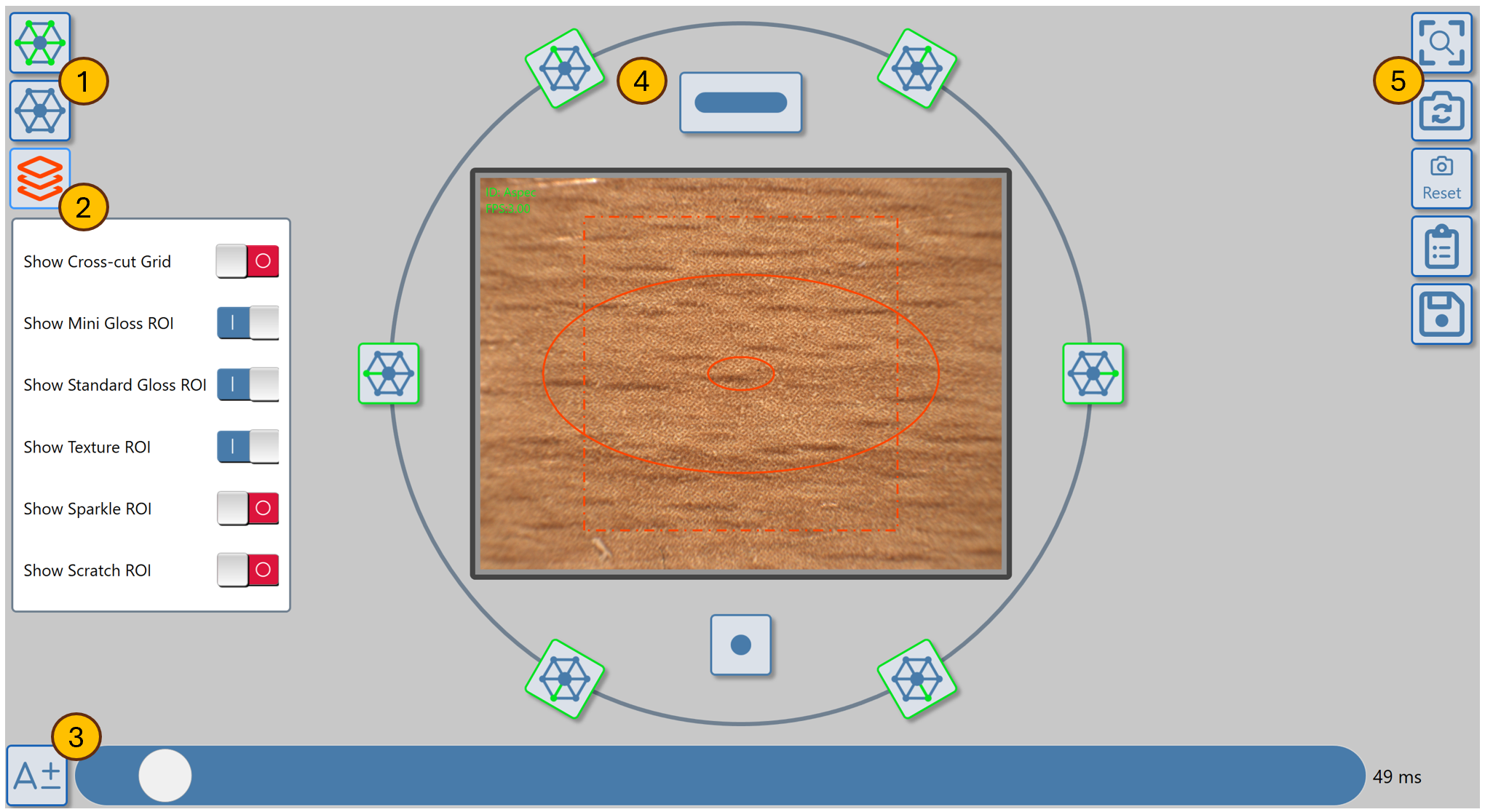

Surface View Mode
Surface View Controls
45 Degree Light- toggle between all on and all off.
Overlay control- switch on overlays to indicate measurement areas for Aesthetix Modules.
Camera exposure control, click "A" to activate auto-exposure or use manual slider.
Individual LED control (Line light, 6 x 45 degree ring lights, 10 degree spotlight )
Image Controls (Reset view, switch to gloss view, reset camera, copy image to clipboard, save image to file)

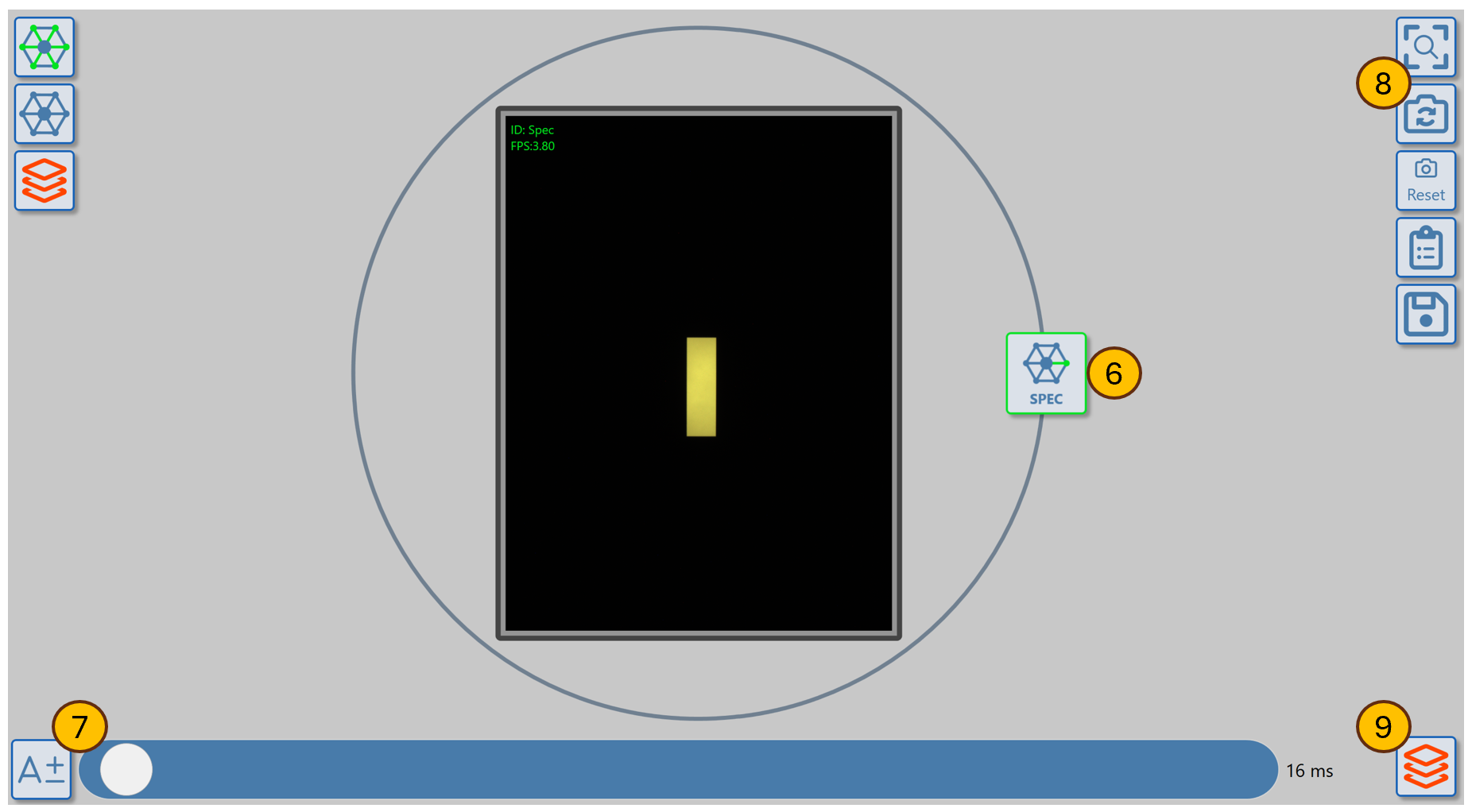

Gloss View Mode
Specular 60 degree light toggle on/off.
Camera exposure control, click "A" to activate auto-exposure or use manual slider.
Image Controls (Reset view, switch to surface view, reset camera, copy image to clipboard, save image to file).
Toggle gloss overlay.
