PaintChecker Lab
- Precision paint thickness gauge.
- Measures wet coatings.
- Non-contact measurement.
PaintChecker Lab
The PaintChecker Lab is a small, stationary tabletop instrument with a high-performance power supply for continuous operation in the lab. Like the other OptiSense PaintChecker models the Lab devices accurately measure wet, powdery and solid coatings on metallic and non-metallic substrates without touching the surface.

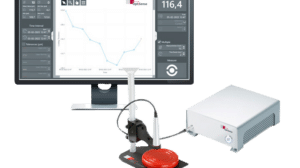

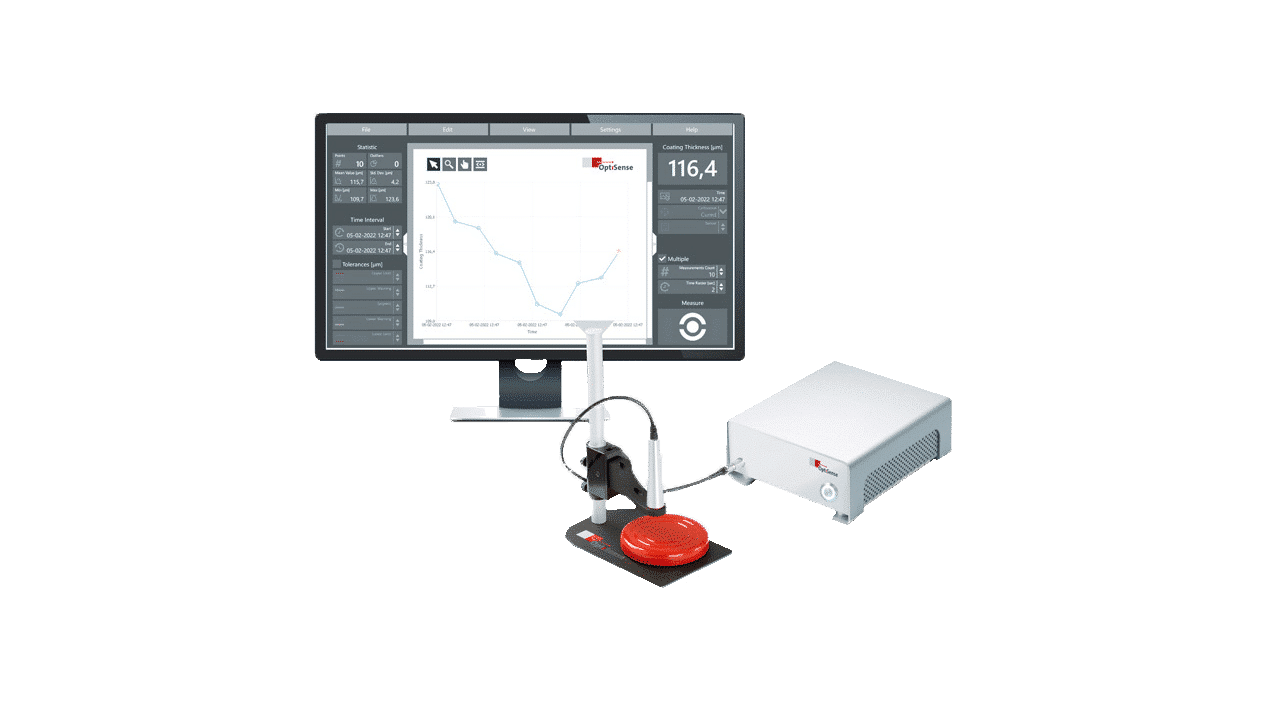

PaintChecker Lab Laser
The OptiSense Lab laser models are used for a wide range of coatings on metallic and non-metallic substrates. With their tiny measuring spot the slim laser sensors are particularly suitable for coating thickness testing on delicate small parts, corners and edges. A special version with an extra short working distance allows to measure in very confined spaces or on coatings containing high amounts of metal. All OptiSense laser models are eye-safe thanks to the patented LARES® technology.

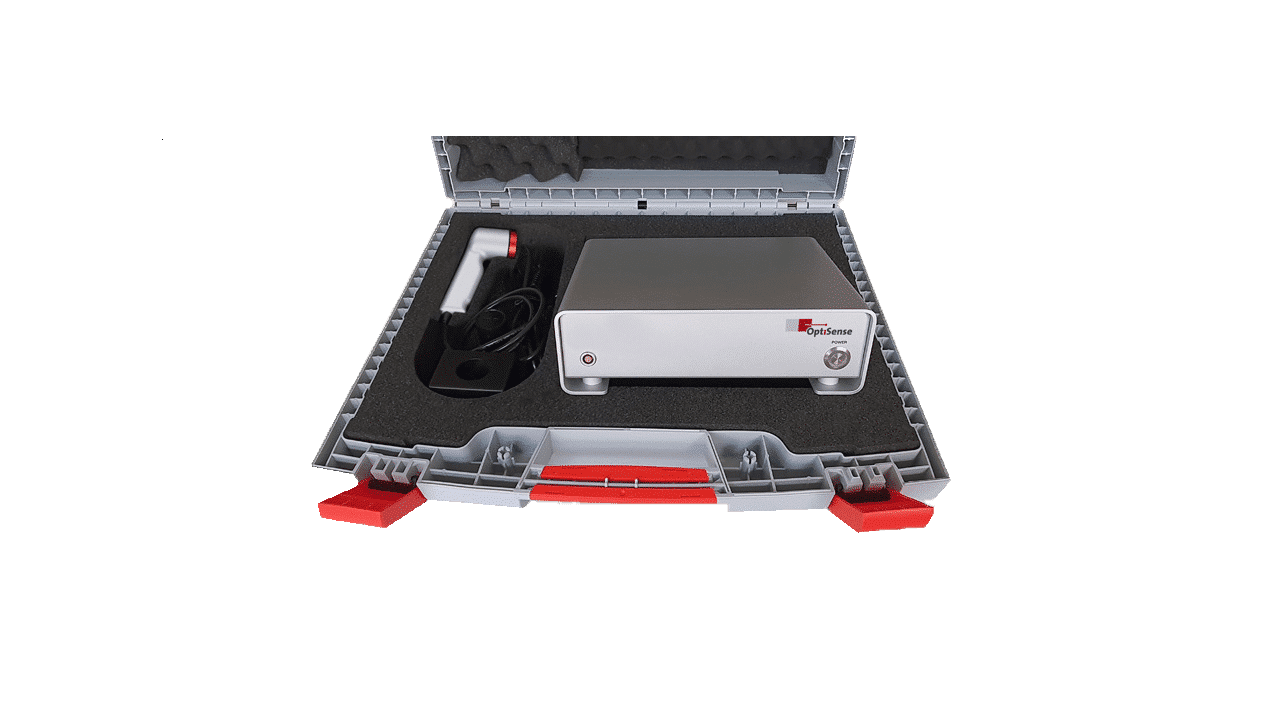

PaintChecker Lab LED-R
LED sensors feature a larger measuring spot making them ideal for freehand measurements on rough surfaces. The LED-R model is particularly suited for components made of plastic or rubber. The sensor head of all OptiSense Lab models is detached from the control unit and connected with a flexible cable. The desktop controller is conveniently placed close to the operating PC while the lightweight, ergonomically designed sensor can be guided precisely and effortlessly to the component without touching or damaging the sensitive coating.

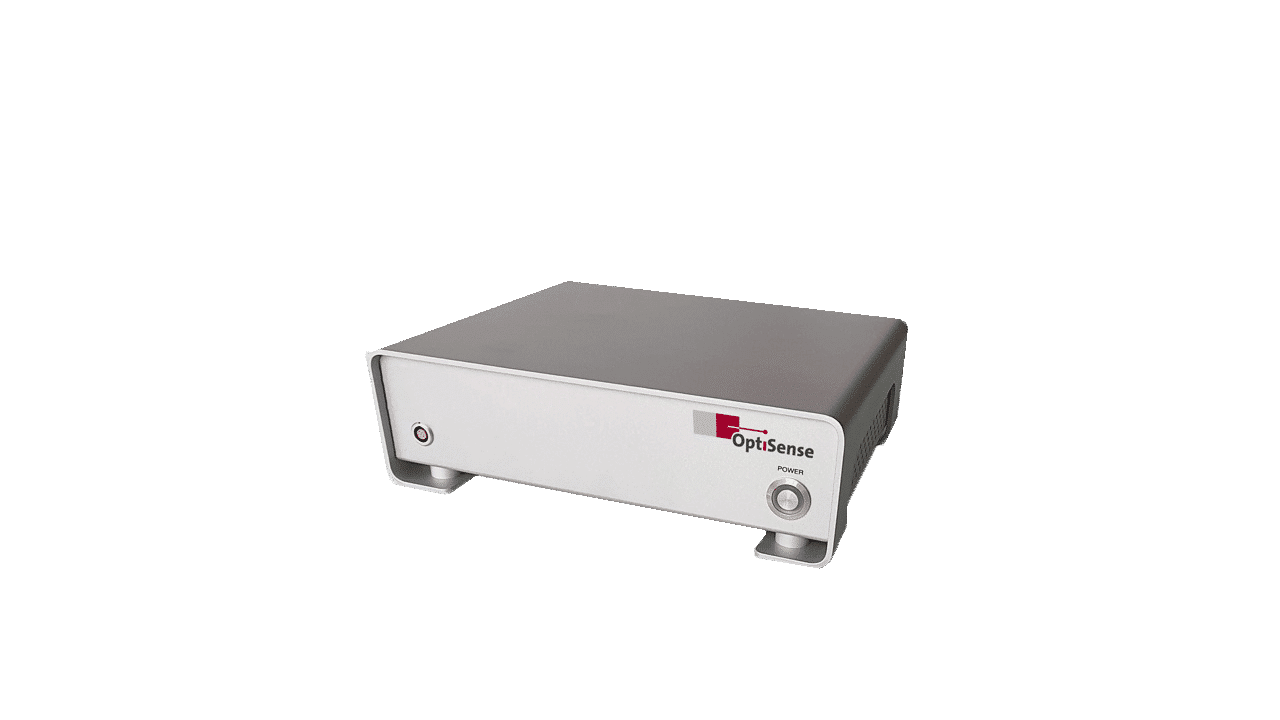

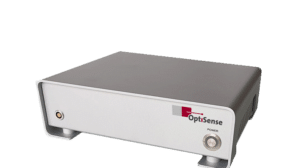

PaintChecker Lab LED-B
The PaintChecker Lab LED-B is designed for contactless testing of freshly applied powder coatings prior to burn-in. It measures the still soft powder layer independent of color and type on substrate such as metal, wood, glass or plastic. The shrinkage during burn-in is taken into account. Simple measurements in the lab with the small desktop unit allow the powder application to be optimized in such a way that the very cost-intensive rework, especially with large components, can be avoided.
Benefits
- Contactless photothermal process for many material combinations
- Small measuring spot accurately detects small parts, corners and edges
- With the sensor, which is separated from the tabletop device, even hard-to-reach areas can be accessed
- High-performance power supply for continuous operation in the lab
- USB interface to connect to PC and notebook
- Operation, data visualization and evaluation via intuitive OS Manager software
- Easy data export to Microsoft Office
