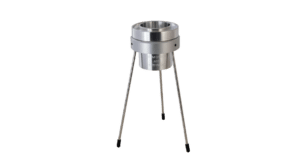

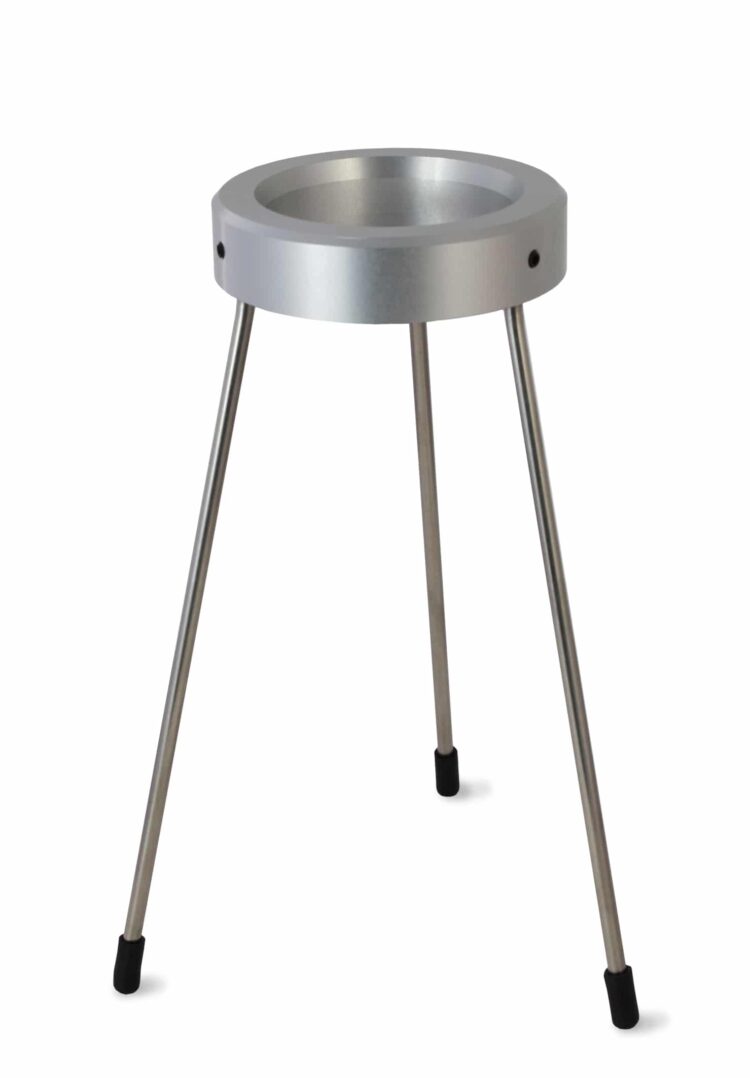

Viscosity Flow Cup Stand

Stand suitable for use with Rhopoint DIN, ASTM, ISO and BS flow cups
Supplied with a certificate of conformity

$165

Share by email

Viscosity Flow Cups

The Rhopoint Flow Cups are designed to accurately measure the viscosity of paints, inks, varnishes and similar products.

What is viscosity?

The term “viscosity” is a parameter that describes a fluids resistance to flow. This resistance is a measure of the friction and the forces of interaction between the layers of a fluid. This friction is apparent when one layer of fluid is made to move against another The greater the friction, the greater the amount of force required to cause the movement – known as “shear”.

The process of flow through an orifice can often be used as a relative measurement and classification of viscosity. This measured kinematic viscosity is generally expressed in seconds of flow time which can be converted into centistokes (cSt) using a viscosity calculator.

Manufactured from high grade aluminium alloy with stainless steel orifices (where indicated), the Rhopoint Flow Cups are available with a range of UKAS / ISO 17025 certified standard oils to confirm the flow cup is measuring within specification.

The Viscosity Flow Cup Stand is suitable for use with all Rhopoint viscosity cups (Sold separately)

Specifications

Instrument Information
Material	High grade aluminium alloy, stainless steel orifice
Commodity Code	9027 8091
Weight	200 - 300g (depending on model)

Product			Order code	Orifice diameter	Viscosity range	Flow times
BS FLOW CUP
	BS 3900 (1971) Old Specification (B2)	RL-A-FC-PTA6/B2	2.38mm (0.09”)	38 - 71cSt	30s - 300s
	BS 3900 (1971) Old Specification (B3)	RL-A-FC-PTA6/B3	3.17mm (0.12”)	38 - 147cSt	30s - 300s
	BS 3900 (1971) Old Specification (B4)	RL-A-FC-PTA6/B4	3.97mm (0.16”)	71 - 455cSt	30s - 300s
	BS 3900 (1971) Old Specification (B5)	RL-A-FC-PTA6/B5	4.76mm (0.19”)	299 - 781cSt	30s - 300s
	BS 3900 (1971) Old Specification (B6)	RL-A-FC-PTA6/B6	7.14mm (0.28”)	781 - 1650cSt	30s - 300s
DIN FLOW CUP
	Din Flow Cup (2mm) - DIN 53211	RL-A-FC-DIN2	2mm (0.08”)	5 - 30cSt	25s - 150s
	Din Flow Cup (4mm) - DIN 53211	RL-A-FC-DIN4	4mm (0.16”)	112 - 685cSt	25s - 150s
	Din Flow Cup (6mm) - DIN 53211	RL-A-FC-DIN6	6mm (0.24”)	550 - 1500cSt	25s - 150s
	Din Flow Cup (8mm) - DIN 53211	RL-A-FC-DIN8	8mm (0.31”)	1200 - 3000cSt	25s - 150s
	The orifices are manufactured from stainless steel.					(approximately)
FORD FLOW CUP
	Ford Flow Cup No 1 - ASTM D1200	RL-A-FC-ASTM1	2.1mm (0.08”)	10 - 35cSt	55s - 100s
	Ford Flow Cup No 2 - ASTM D1200	RL-A-FC-ASTM2	2.8mm (0.11”)	25 - 120cSt	40s - 100s
	Ford Flow Cup No 3 - ASTM D1200	RL-A-FC-ASTM3	3.4mm (0.13”)	49 - 220cSt	30s - 100s
	Ford Flow Cup No 4 - ASTM D1200	RL-A-FC-ASTM4	4.1mm (0.16”)	70 - 370cSt	30s - 100s
	Ford Flow Cup No 5 - ASTM D1200	RL-A-FC-ASTM5	5.8mm (0.23”)	200 - 1200cSt	30s - 100s
	The orifices are manufactured from stainless steel.
ISO/ASTM FLOW CUP
	Flow Cups to BS EN ISO 2431, ASTM D5125	RL-A-FC-ISO3	3mm (0.12”)	7 - 42cSt	30s - 100s
	Flow Cups to BS EN ISO 2431, ASTM D5125	RL-A-FC-ISO4	4mm (0.16”)	35 - 135cSt	30s - 100s
	Flow Cups to BS EN ISO 2431, ASTM D5125	RL-A-FC-ISO5	5mm (0.20”)	91 - 325cSt	30s - 100s
	Flow Cups to BS EN ISO 2431, ASTM D5125	RL-A-FC-ISO7	6mm (0.24”)	188 - 684cSt	30s - 100s
	Flow Cups to BS EN ISO 2431, ASTM D5125	RL-A-FC-ISO8	8mm (0.31”)	600 - 2000cSt	30s - 100s
	The orifices are manufactured from stainless steel.
AFNOR FLOW CUP
	Afnor Flow Cup - 2.5mm - NF T30-014	RL-A-FC-AFNOR/2.5	2.5mm (0.10”)	5 - 140cSt	30s - 100s
	Afnor Flow Cup - 4mm - NF T30-014	RL-A-FC-AFNOR/4	4mm (0.16”)	50 - 1100cSt	30s - 100s
	Afnor Flow Cup - 6mm - NF T30-014	RL-A-FC-AFNOR/6	6mm (0.24”)	510 - 5100cSt	30s - 100s
	Afnor Flow Cup - 8mm - NF T30-014	RL-A-FC-AFNOR/8	8mm (0.31”)	700 - 11500cSt	30s - 100s
FRIKMAR FLOW CUP
	Frikmar Flow Cup 2mm - DIN 53211	RL-A-FC-FRIKMAR/2	2mm (0.08”)	15 - 30 cSt	25s - 150s
	Frikmar Flow Cup 4mm - DIN 53211	RL-A-FC-FRIKMAR/4	4mm (0.16”)	112 - 685cSt	25s - 150s
	Frikmar Flow Cup 6mm - DIN 53211	RL-A-FC-FRIKMAR/6	6mm (0.24”)	550 - 1500cSt	25s - 150s
	Frikmar Flow Cup 8mm - DIN 53211	RL-A-FC-FRIKMAR/8	8mm (0.31”)	1200 - 3000cSt	25s - 150s
	The orifices are manufactured from stainless steel.					(approximately)
