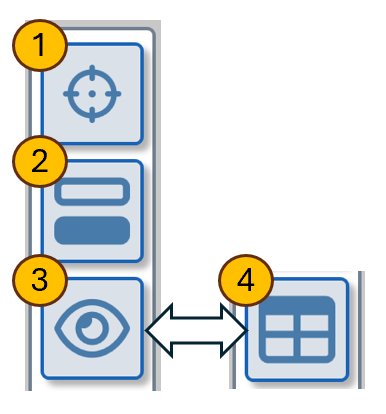

Action Bar

The Action Bar is used to control the instrument.

1. Measure Button
   Click here to start a measurement- results will be recorded in the measurement table. A "greyed out" measurement button indicates the license for this module is not present or expired. Install a new Aesthetix License

2. Calibration
   Press to begin Calibration

3. Interactive Measurement Button
   Pressing this button will start an interactive measurement, this includes live views from the Aesthetix camera to allow for sample alignment and adjustment of measurement parameters.
   Interactive measurement is not available for certain modules or instruments- this button will not be present in the Action Bar

4. Table View
   Press this button to toggle the table view.
