Measurement Images, Maps, Graphs and Histograms

Individual measurements can be expanded to view measurement images, maps and further analysis tools.

^{The Expanded Measurement View is accessed by using the expand control}

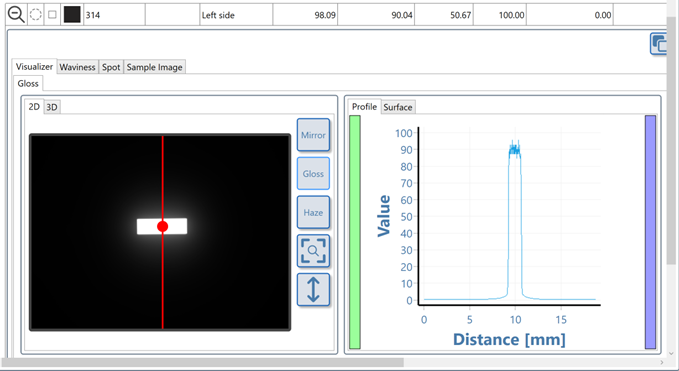

The expanded measurement view contains multiple tabs with measurement images, maps, and graphs.

^{The contents and layout of the Expanded Measurement View depend on the measurement module.}
